News

Diesel storage and pumps

By in News

Diesel Prices hitting your hip pocket

Talk with Global about our wide range of Diesel tanks, and diesel station setup.

Our Diesel Tanks are;

  • Engineered approved material and design – Diesel Grey
  • Ultra UV stabilised material meets Australian Standard ASNZ4766
  • Diesel grade polyethylene that meets International Regulation ECE R34.01
    requirements
  • Heavy duty tank with load capabilities of 1.3 Specific Gravity (SG)
  • Stainless Steel Pipe, Press fittings
  • Engineered approved material and design – Diesel Grey
  • Ultra UV stabilised material meets Australian Standards    ASNZ4766
  • Secure protective cover.
  • Diesel grade polyethylene that meets International Regulation ECE R34.01 requirements

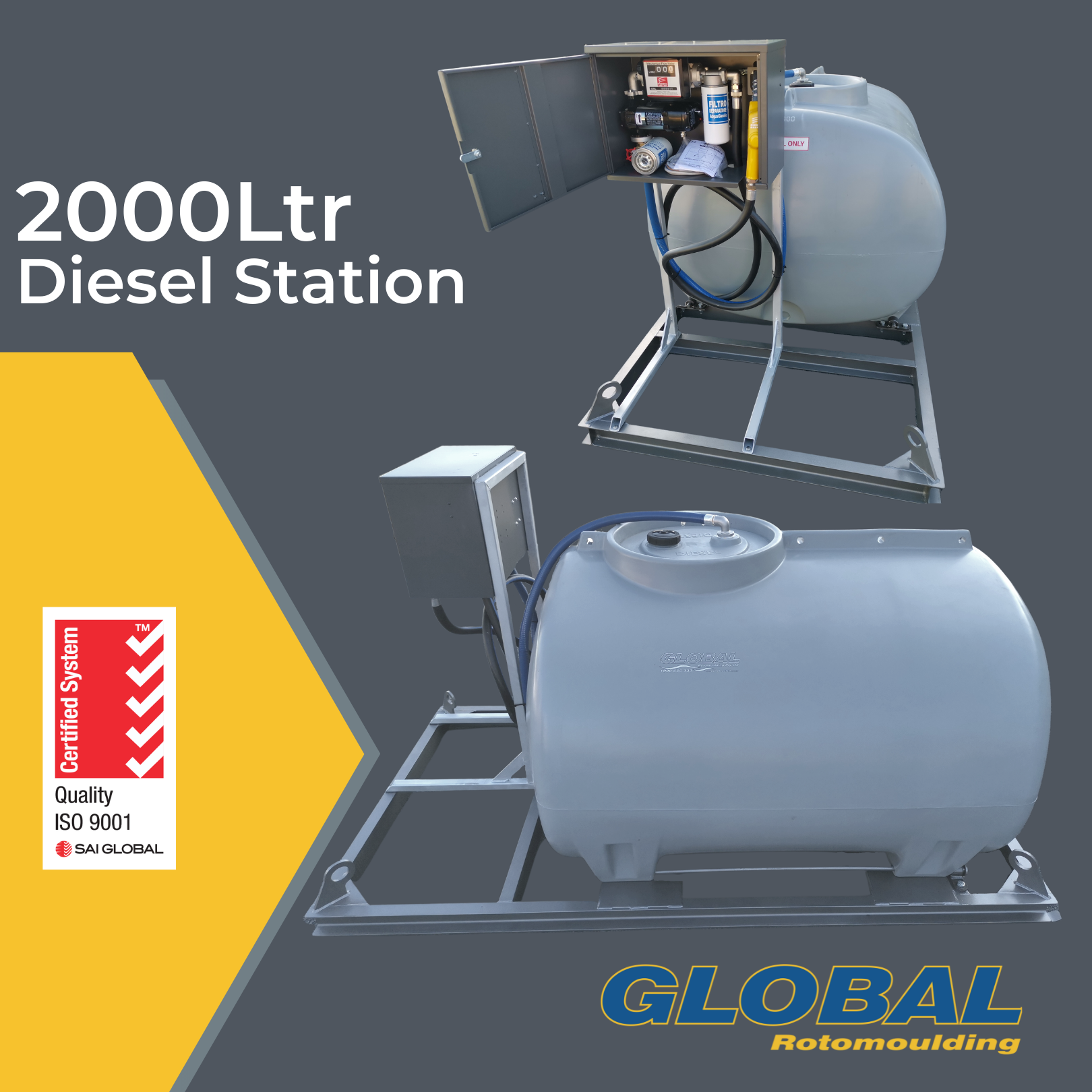

Large Onsite Diesel Stations options

1,000ltr to 15,000ltr options

Can be customized to suit your needs

  • Engineered approved material and design – Diesel Grey
  • Ultra UV stabilised material meets Australian Standard ASNZ4766
  • Diesel grade polyethylene that meets International Regulation ECE R34.01
    requirements
  • Heavy duty tank with load capabilities of 1.3 Specific Gravity (SG)
  • Stainless Steel Pipe, Press fittings
  • Sight tube with control valve
  • 1” fuel pick up pipe with filter & foot valve installed
  • Backflow valve with 2” stainless steel ball valve &
    2” cam lock fill pipe
  • 2” breather installed on lid of tank
  • Smooth internal tank surface
  • Genuine pin mount system
  • Anti-spill containment lip around lid
  • 5 year warranty

Pump Options

M.870 Maestri Diesel Transfer
Pumps

  • 12v  45 lpm (free flow) vane pump with IP55 water ingress resistance rating
  • Internal pressure bypass to prevent damage from running with nozzle shut
  • 3/4 BSPF inlet and outlet
  • On/Off switch on pump body
  • Max current draw of 22 amp at 12v

M.2000N Maestri Diesel Transfer
Pumps

  • 12/24v bimotor vane pump with safety pressure bypass and heinmann electrical breaker/switch
  • Max capacity of 80 lpm
  • Supplied with 4m electrical cable and alligator clips
  • This pump is used in the 12/24v mini bowser

Maestri Security Box
Pumps

  • 40 lpm vane pump kit
  • Supplied with water absorbing 30 micron filter, auto shutoff nozzle
  • 3 digit mechanical meter with resettable and non resettable counters
  • security gate valve on suction side, 2.5m suction hose with foot valve and strainer
  • 4m of 25mm discharge hose with swaged fittings
  • Mounted in high security steel cabinet with key lock. 640 x 440 x 310mm

Available as above but with 80 lpm 12/24 bi pump

Available as but with 70 lpm 240v pump
